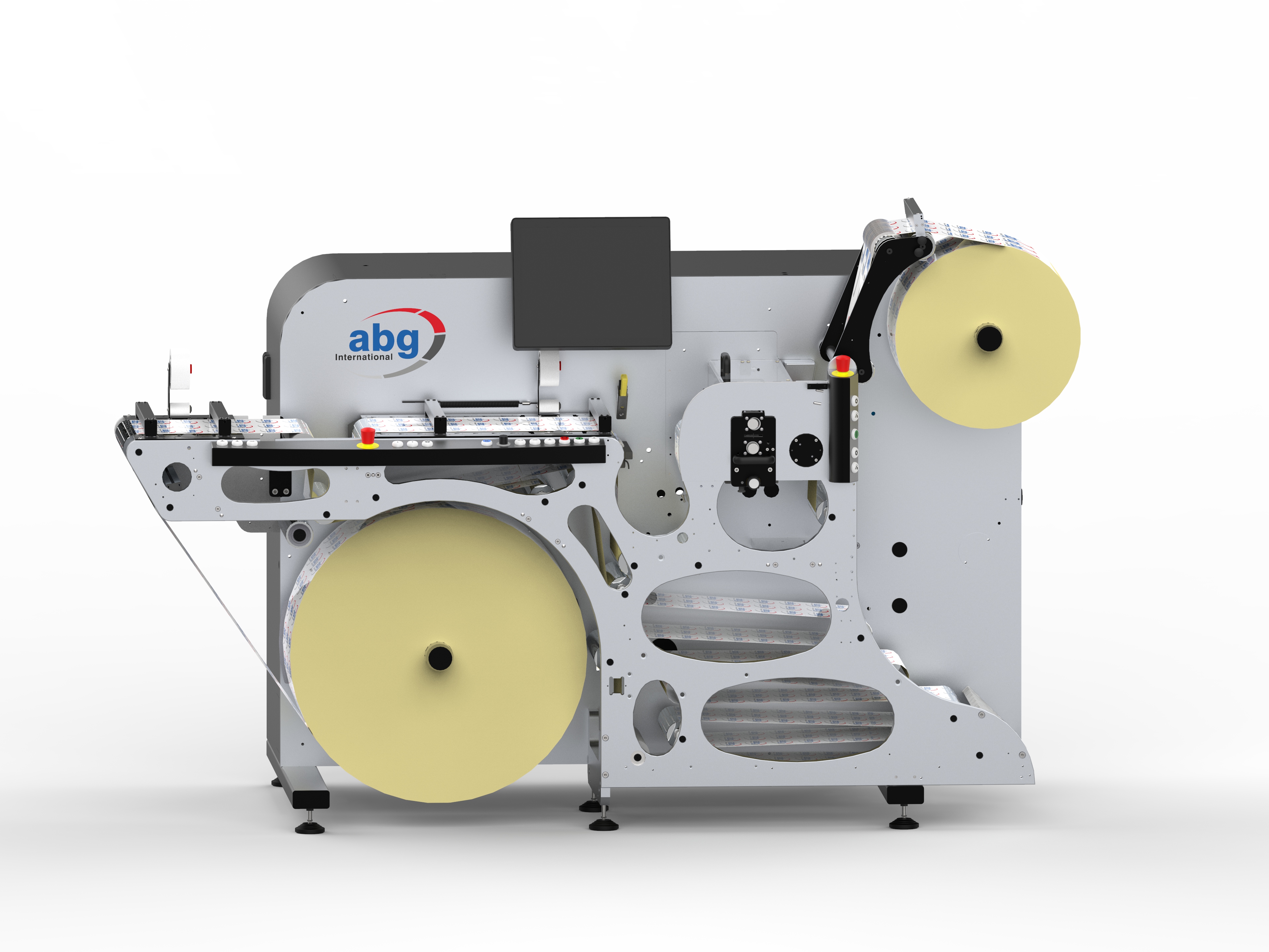

Omega SRI
The Omega SRI is a powerful, efficient and versatile label finishing system, which offers three high speed functions: slitting, rewinding and inspection
It is also unique, in that it is the only machine available that doesn’t rely on a third party inspection system.
Instead, it is fitted with our own 100% fleyeVision inspection equipment, which means that everything works perfectly and effortlessly together.
All three processes are controlled and monitored by a single, multilingual and easy-to-use touchscreen display.
Combining a high level of automation, advanced motion technology and a wide range of innovative features, the Omega SRI is a clear market leader - with over 1,000 systems installed worldwide.
Offering fast set up and processing speeds of up to 350 m/min, the Omega SRI delivers outstanding efficiency and productivity.
Technical Specifications
SPECIFICATIONS
Maximum Web Width: 330mm (13") / 430mm (17") / 530mm (21")
Maximum Speed: 350m/min (1150 ft/min)
Maximum Unwind Roll Diameter: 800mm (31.5")
Maximum Rewind Roll Diameter: 500mm (19.5") Optional 600mm (23.5")
Standard Mandrel: 76mm (3")
Minimum Slitting Width: 12.5mm (0.5")
Slitting Tolerance: ±0.15mm (0.006")
FEATURES AND BENEFITS
Versatility - ideal for a wide range of applications and materials.
Advanced servo technology - ensures perfect web control, with adjustable web tension and integrated web guide.
Quick set up and change over - JDF/JMF ready with pre-defined jobs and job repeat functions; easy to adjust knives on slide out shafts.
fleyeVision - up to 8K resolution, delivers 100% detection of errors and full quality control.
Ergonomic - user friendly, with a choice of standing or sitting operating positions.
Counting options - including number of labels, diameter at rewind roll, web length.
Waste reducing - with a short web path, and adjustable end of roll stop.
Choice of web widths - 330mm, 430mm and 530mm.
Moveable web clamps - allow for the easy replacement of long or short labels.
