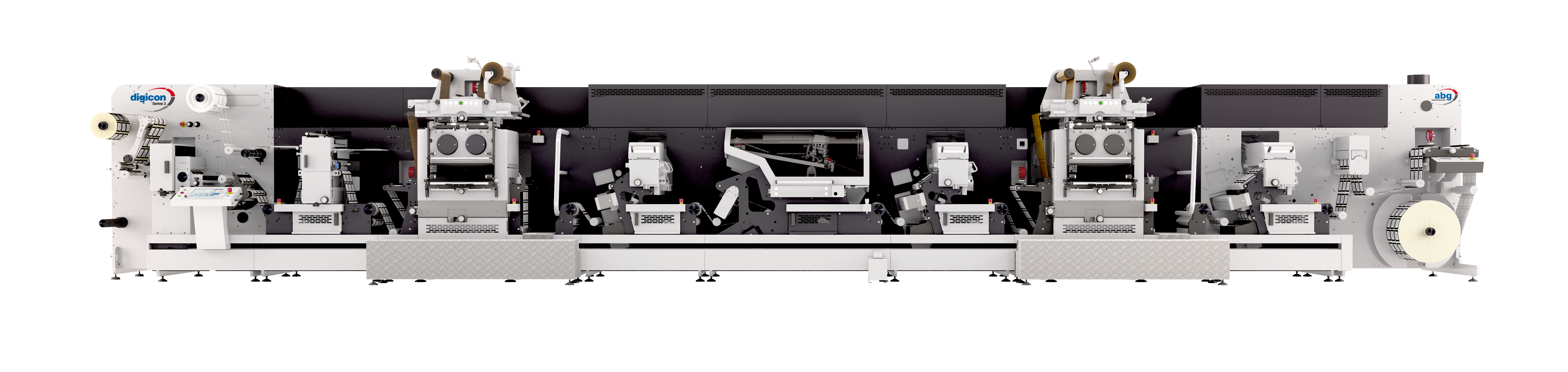

Digicon S3

For over 15 years, Digicon digital finishing equipment has been a clear market leader, with over 1000 machines installed worldwide. Able to work faster, and capable of adding an even wider range of valuable finishes to labels, packaging and shrink sleeves

Digicon Series 3 systems are modular in design, so that they can be tailored to meet individual needs and create a clear, competitive advantage for any print business.

Here are the key features and benefits of just a few of our most popular modules and options:
Fast Track Die Cutting: the world’s fastest semi-rotary die cutting system – able to run at 150 metres per minute and work in-line with the world’s fastest digital print engines.


Technical Specifications

SPECIFICATIONS

Maximum Web Width: 350mm (13.8")
Maximum Speed: Full Rotary - 150m/min (492ft/min) Semi Rotary - 64m/min (210ft/min)
Maximum Unwind Roll Diameter: 800mm (31.5")
Standard Unwind Mandrel: 76mm (3")
Flexographic Unit Type: Full Rotary/ flood coating/ Semi Rotary
Maximum Printing Width: 330mm (13")
Minimum/Maximum Plate Cylinder: 254mm (10")/647.7mm (25.5")
Ink Drying: GEW E2C UV Drying or Hot Air
Die Cutting Unit Type: Semi Rotary
Maximum Die Cut Repeat: 622.3mm (24.5")
Minimum/Maximum Tool Repeat: 304.8mm (12")/647.7mm (25.5")
Maximum matrix rewind Roll Diameter: 800mm (31.5")
Maximum rewind Roll Diameter: 600mm (23.6") Optional 800mm (31.5")
Standard Rewind Mandrel: 76mm (3")


FEATURES AND BENEFITS

Accurate - built with precision to ensure consistent results.
Flexible - with modules and options to give you a competitive edge.
Easy-to-use - with intuitive controls and low-cost maintenance.
Time saving - with a wide range of automated functions.
Fast - able to keep pace, inline, with the latest digital print engines.
Roll-to-roll, or roll-to-sheet - for any digital printing application.
